APX 808 BIFOLD DOOR

The APX 902 Pivot Door is crafted for entryways looking to make a statement. Its slim aluminum frame and expansive glass create a striking balance of light, scale, and modern design. the APX 902 allows designers and homeowners to create a truly distinctive and personalized entry experience.

Material

Thermally broken aluminum

Finish

AAMA 2604 powder coating

Glass

Offered in Dual and Triple pane

Sizing

Max: 42”x120” single panel and 30’ total opening

APX 808 BIFOLD DOOR

The Details

Massive span capabilities

Exterior is made with extruded aluminum for proven strength and versatility

Multi-point Hoppe handle

Trusted European quality and design

Multiple Sill options

Recessed and standard sill options to meet any architectural needs

Narrow Stile and Rails

To maximize glass and minimalize sightlines

Product Overview:

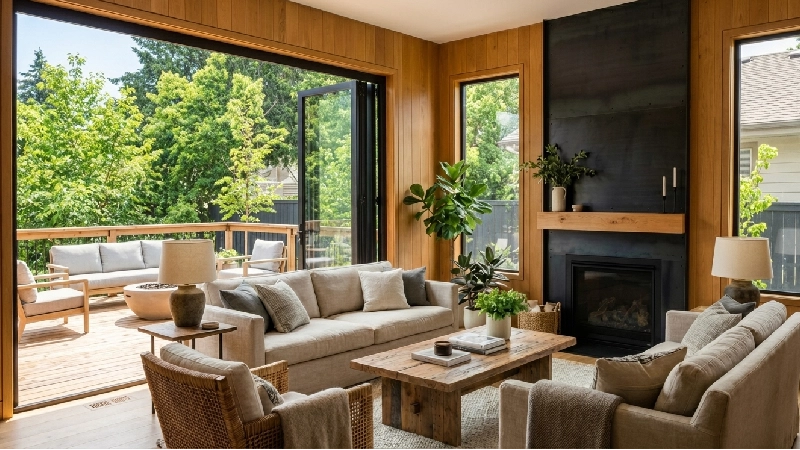

The APX 808 Bifold Door System features a sleek aluminum design with minimal stiles and rails, maximizing glass and creating expansive views. Engineered for large openings and flexible configurations, the system folds smoothly to the exterior, allowing spaces to fully open and connect the indoor and outdoor living areas. Built with premium European engineering and hardware, the APX 808 delivers smooth operation, long-term durability, and reliable performance. Its clean architectural lines and dramatic opening capabilities create a true “wow factor” for modern homes.

Design Options

Size Specifications

Frame size: 1.4 ”
Panel rail / stile size: 2.1” (2.1" plus 2.1" panel to panel design creates a 4.2” combined stile)
Sill: 2.0” (Interior height)
Header: 2.6"
Frame depth: 3.9”
Maximum size: Max: 42”x120” single panel (84”x120” french door)

Finishes

Our aluminum products feature a durable AAMA 2604 powder coat finish, delivering long-lasting color performance and resistance to fading, chalking, and weathering. Choose from over 25 standard colors, with the flexibility to create custom color options at no additional cost, allowing you to perfectly match the design vision of any project.

Glass

All ARC products come standard with tempered safety glass for enhanced strength and durability. Our systems are available with dual-pane or triple-pane insulated glass, allowing you to tailor performance to meet energy efficiency goals, climate conditions, and building code requirements.

Our standard glazing includes Low-E coatings and argon gas between the panes to help improve thermal performance and comfort inside the home. A variety of decorative and specialty glass options are also available to meet the unique design and performance needs of each project. Laminated glazing can be specified in clear, bronze, gray, or green, with additional tinted interlayer options.

For projects with specialized requirements, we offer glass solutions designed for sound control (STC/OITC), high-altitude applications, coastal environments, sea turtle conservation zones, California fire zones, and hurricane-rated systems.

Not all decorative glass options are compatible with every product configuration. Please consult with your dealer or project specialist to determine the best glass package for your specific application.

Hardware

Our swing doors are equipped with premium Hoppe hardware, known for its sleek modern design and reliable European engineering. The multi-point locking system provides enhanced security and smooth operation while maintaining a clean, contemporary appearance. For additional flexibility, the hardware can be swapped for other compatible multi-point systems in the same configuration to meet specific project preferences or design requirements.

Inactive door panels are secured with a flush-mounted flip lever that locks and unlocks the panel in place. The lever sits neatly within the door surface to maintain a clean, streamlined aesthetic while allowing quick and easy operation when the full opening is needed.

Configurations

The APX 808 Bifold Door System offers a wide range of configuration options to suit different opening sizes and design needs. Available in 2 to 6 panel configurations, the system can be designed to fold left, right, split, or from the center, allowing for flexible layouts that maximize access and flow between spaces. This versatility allows architects and designers to tailor each system to the project, creating large, seamless openings that enhance both functionality and visual impact.

Screen

ARC doors feature an integrated retractable screen discreetly housed within the interior door jamb and attached directly to the door frame. The screen easily pulls across from the side when ventilation is needed, providing convenient functionality without permanently interrupting the view. When not in use, the screen retracts and remains concealed within the frame, preserving the clean lines and expansive views that define the ARC Door system.

Divided Lites

Because each door is built to order, we offer extensive flexibility when it comes to divided light and grid configurations. Grid layouts can be fully customized to match the architectural intent of the project, allowing for a range of styles from modern flat bar grids to more traditional or industrial pitch profiles. Grid size, spacing, and pattern can also be tailored to achieve the desired look, giving designers and homeowners the freedom to create a truly custom window aesthetic.
